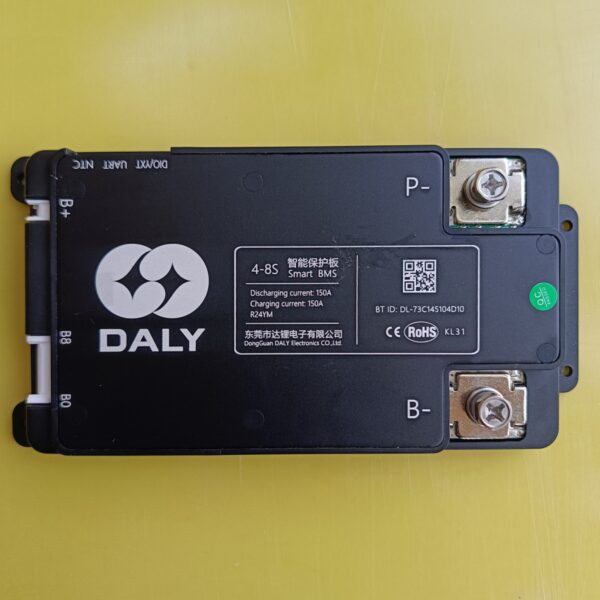

4-8s 150A Daly Smart Bms Passive Balance

Description

The 4-8S 150A Daly Smart BMS (4S-8S 150A Smart BMS with Passive balancing is a high-performance management system for LiFePO4 or Li-ion batteries (12V-24V). Featuring Bluetooth, it enables real-time monitoring via a smartphone app to maximize battery longevity, suitable for solar storage and EVs.
Key Specifications & Features:

• Battery Compatibility: 4S to 8S (Supports LiFePO4, Li-ion)
• Continuous Current: 150A
• Balance Type: Balance passive
• Smart Functions: Built-in Bluetooth (app connectivity), UART/CAN/RS485 support
• Protection: Over-charge, over-discharge, over-current, short circuit, and temperature protection
• Applications: RVs, solar storage, golf carts, electric vehicles

Key Advantages:

• App Control: Users can monitor, configure, and troubleshoot using the Daly app.
• Robust Design: Rugged aluminum casing helps with heat dissipation.

Ensure the BMS is wired correctly in order (B-, B1+, B2+, …, B8+) and that all connections are secure to avoid damage.
