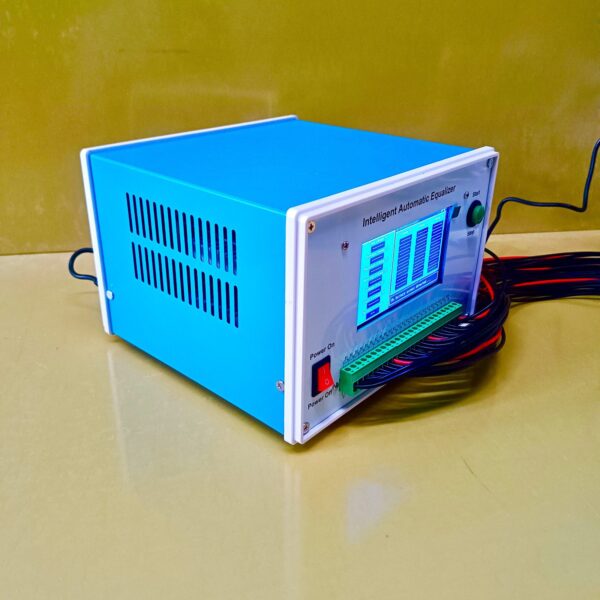

24S 5A INTELLIGENT AUTOMATIC EQUALIZER

Description

• Support 2-24S lithium batteries (li-ion,Lifepo4,LTO, battery voltage between 2V-4.5V).
• Uniform voltage is automatically identified as the lowest voltage of the battery series.
• Automatic identification series of the battery pack.
• Reverse connection, overvoltage 4.5V, low voltage protection (2V) alarm.
• After balancing is completed, the system automatically stops and generates an alarm.
• Equalizer belongs to constant resistance discharge mode, constant resistance value 1 ohm (LI-ION max
  current up to 5A.

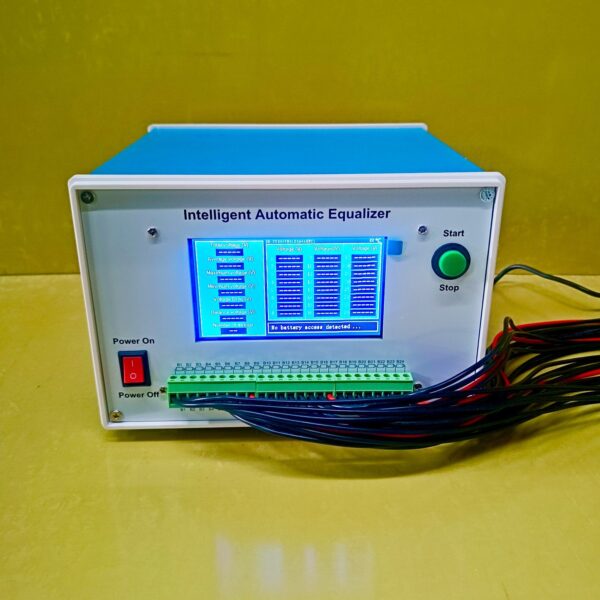

• Display content (each series of voltage, total voltage, average voltage, maximum voltage, minimum
  voltage, maximum differential pressure, balanced voltage,Number of battery series).
• Easy operation, simple and easy to use.
• Good effect and fast speed.
• Single series input interface voltage (-100V~+100V).

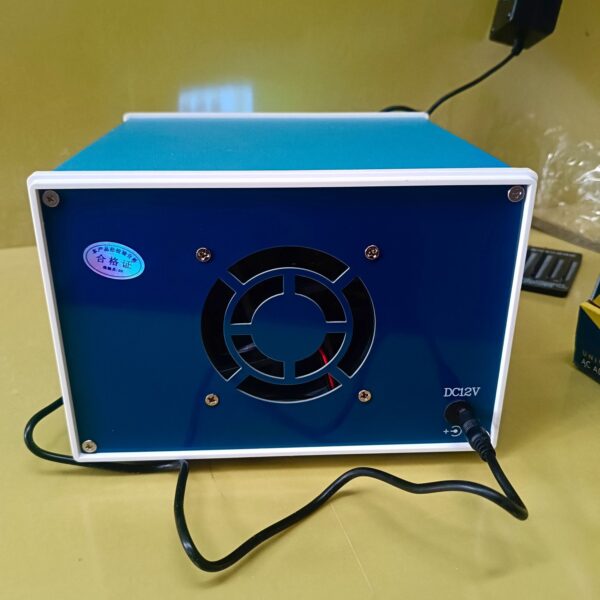

• External power supply 12V5A.

The 24S 5A Intelligent Automatic Equalizer (XY-FD04AS24G) is a high-performance device designed to balance voltage across 24 series-connected battery cells, ensuring uniformity and efficiency. With a maximum current of 5A, it automatically detects and equalizes voltage discrepancies, enhancing battery performance and prolonging lifespan. The equalizer features built-in overcurrent and overheating protection for safe and reliable operation. It is ideal for applications such as electric vehicles, energy storage systems, and other high-power devices where consistent cell voltage is crucial. Compact and easy to integrate, the XY-FD04AS24G provides a cost-effective solution for maintaining optimal battery health.
