3.2v 314ah GanFeng capacity 330+ah

Description

Datasheet A-CPS-7VH4L4-011-A2314Ah The GANFENG 3.2V 314ah Prismatic LiFePO4 Cell a high-capacity, long-life lithium iron phosphate battery cell engineered for solar energy storage, electric vehicles, and renewable power systems.

Manufactured by Ganfeng Lithium, a world-renowned lithium technology leader, this A-grade 314Ah prismatic cell delivers outstanding stability, high energy density, and 3500+ charge cycles, making it one of the most reliable energy solutions for both industrial and residential applications.

Built to meet ESS and EV performance standards, the GANFENG 314Ah cell provides consistent power output, low internal resistance, and excellent thermal safety, ensuring efficiency and longevity in demanding environments.

Technical Specifications

• Product Name: GANFENG 314Ah
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Form Factor: Prismatic Cell
• Nominal Voltage: 3.2V
• Nominal Capacity: 314Ah
• Energy: 320Wh per cell
• Cycle Life: ≥3500 cycles @ 80% DOD
• Grade: A-Grade (ESS Certified)
• Charge Voltage: 3.65V
• Discharge Cutoff Voltage: 2.0V
• Standard Charge Current: 0.5C
• Max Continuous Discharge Current: 1C – 2C peak

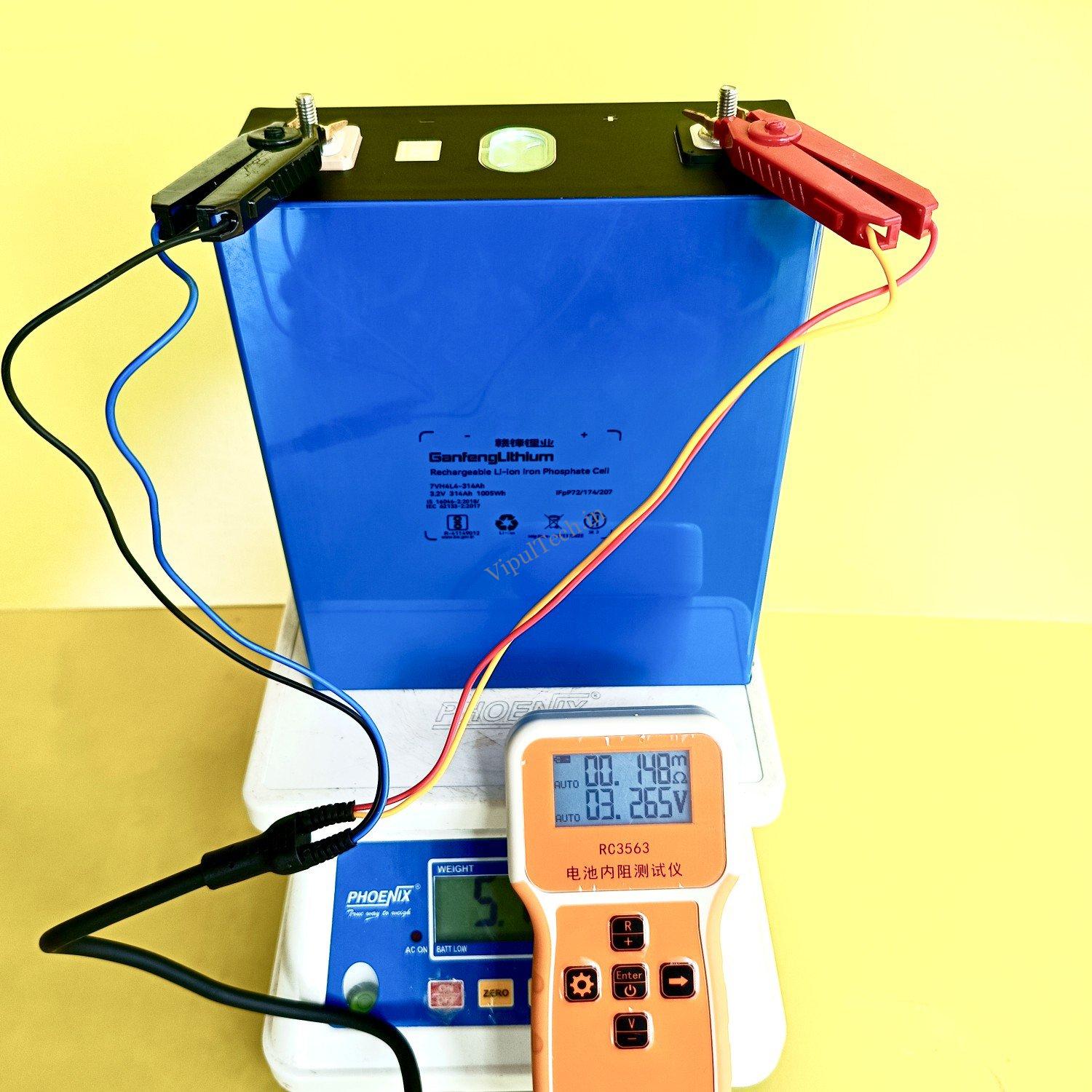

• Internal Resistance: ≤1.5mΩ
• Operating Temperature: Charge: 0°C to 55°C / Discharge: -20°C to 60°C

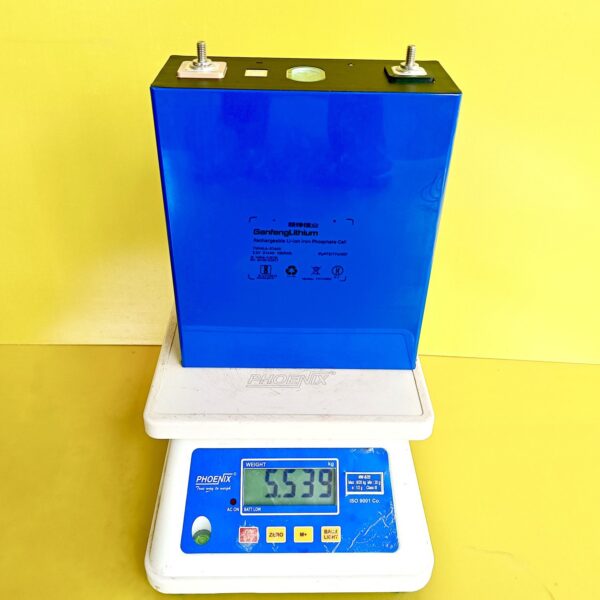

• Weight: Approx. 5.5kg per cell
• Dimensions: ~174mm (H) × 72mm (T) × 207mm (W) (varies slightly by batch)
• Certifications: CE, UL, UN38.3, RoHS, MSDS

Key Features

• High Energy Capacity (314Ah) – Ideal for ESS, solar, and electric vehicle applications requiring long-duration power.
• 3500+ Life Cycles – Ensures exceptional longevity and long-term cost efficiency.
• Stable 3.2V LiFePO4 Chemistry – Superior safety, thermal stability, and consistent voltage output.
• A-Grade Prismatic Design – High-quality cells with tight capacity and resistance matching.
• Low Internal Resistance – Enables efficient charging, low heat generation, and superior performance.
• Environmentally Safe & RoHS Certified – Non-toxic, stable chemistry ideal for sustainable energy systems.
• Compatible with BMS Systems – Works seamlessly with popular BMS configurations for ESS and EV setups.

Application Areas

• Energy Storage Systems (ESS) – Perfect for solar, wind, and hybrid power storage systems.
• Residential & Commercial Solar Storage – Reliable energy backup for homes, offices, and microgrids.
• Electric Vehicles & E-Bikes – Suitable for EV conversions, golf carts, and light transport systems.
• Off-Grid Power Systems – Stable and high-capacity storage for remote or rural installations.
• UPS & Backup Power – Long-life solution for data centers, telecom, and emergency systems.
• DIY Powerwalls – Ideal for hobbyists and engineers building custom lithium battery packs.

Product Highlights

• 3.2V / 314Ah Ganfeng A-Grade LiFePO4 Prismatic Cell
• 5000+ deep charge/discharge cycles at 80% DOD
• High discharge performance and thermal safety
• Low internal resistance with long operational life
• Suitable for ESS, solar energy, EVs, and backup power
