JBD Smart BMS 4S 200A

Description

• Cell specifications: 4 strings of LiFePO4 battery
• Continuous current: 200A
• Balance detect Voltage 3.8
• Interface type: Charge and discharge are both at the same port
• Charging voltage: 3.6V*Number of strings
• Cell voltage range: 2.30~3.75V
• Continuous charging current: 200A
• Continuous discharging current: 200A

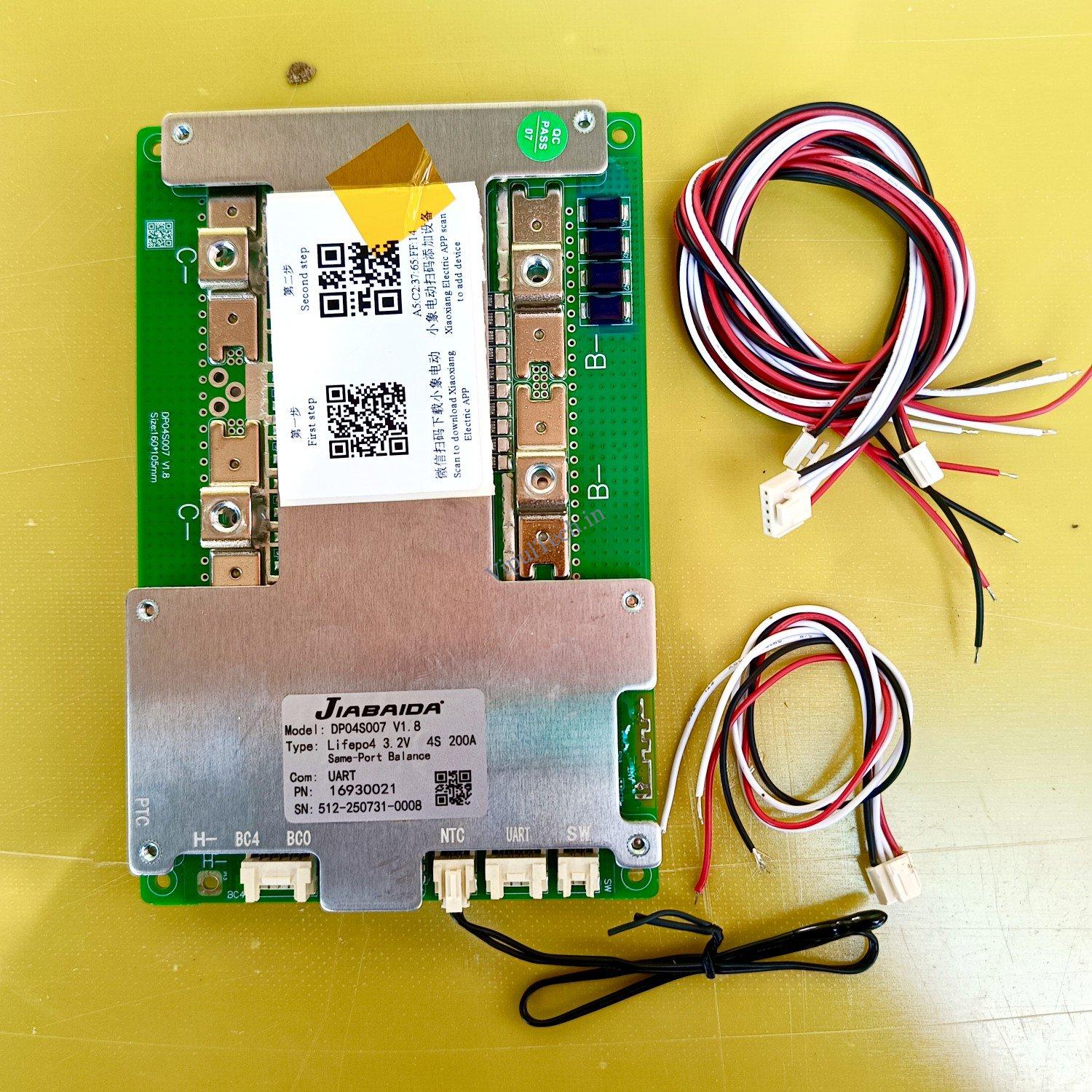

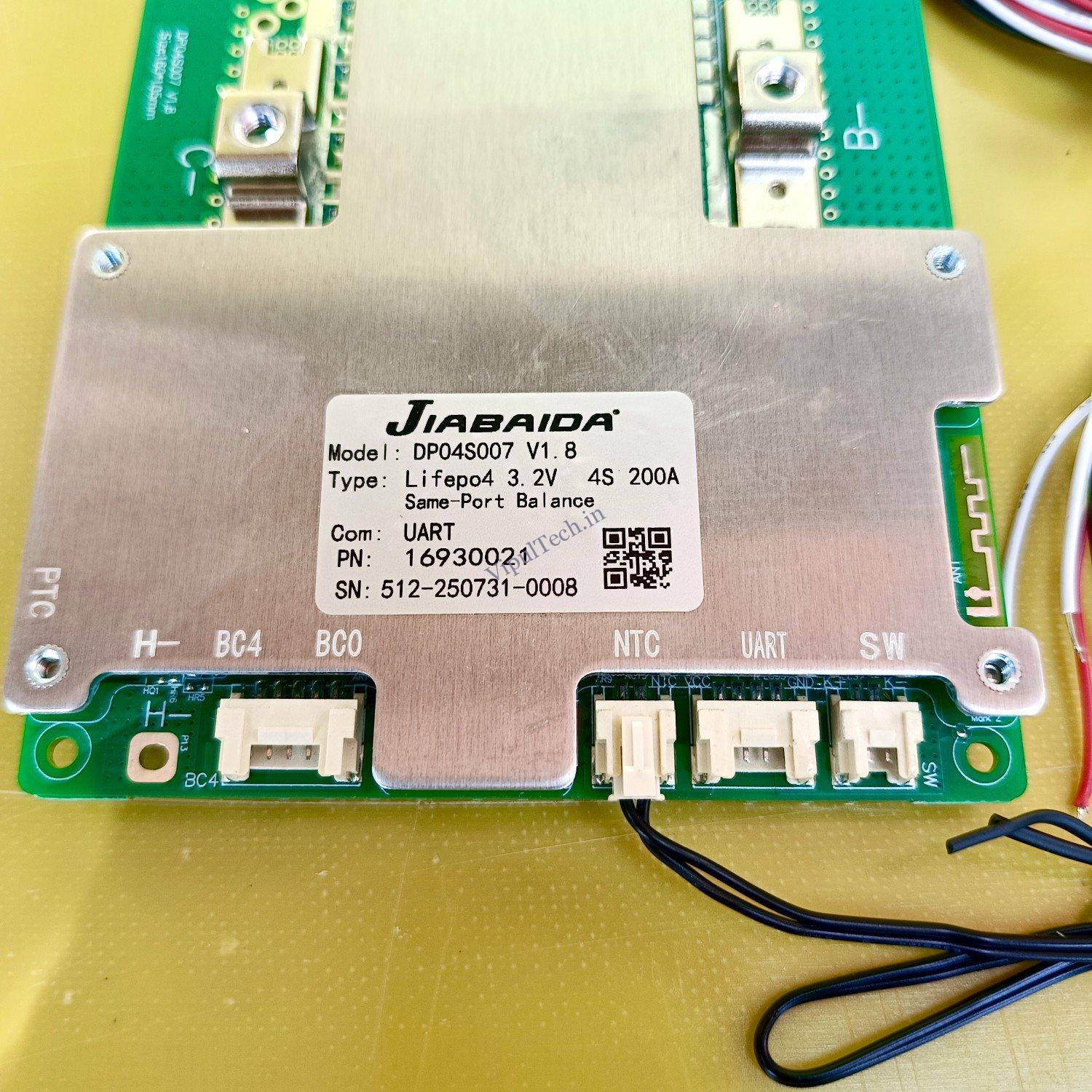

The JBD SMART BMS 200A DP04S007 (4S) is a compact and powerful Battery Management System designed for lithium-ion and LiFePO4 battery packs with 4 series cells. It supports a continuous discharge current of 200A, making it suitable for high-power applications such as electric vehicles, portable power systems, and energy storage solutions. This BMS provides essential protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature management to ensure safe and reliable battery operation. With active cell balancing, it maintains voltage consistency across cells. It also supports UART, and CANBUS communication, along with Bluetooth for real-time monitoring and diagnostics, offering flexibility and control over battery performance.
